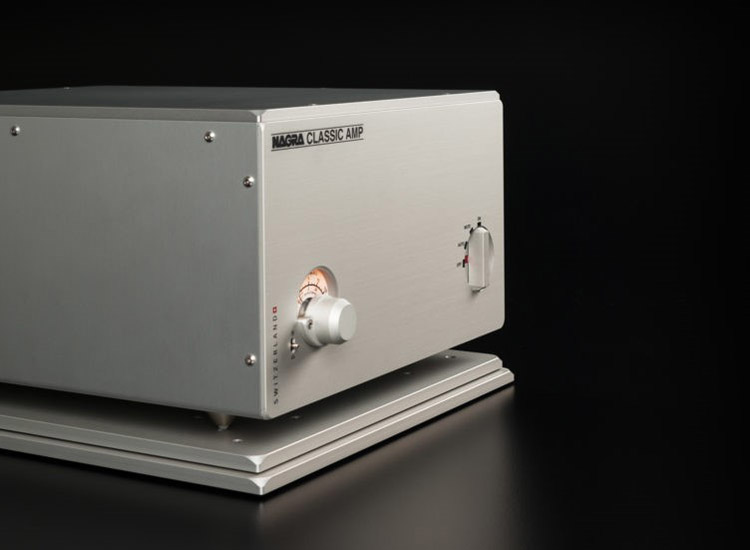

CLASSIC AMP

Input impedance: > 100k ohm

Output power: 100 W RMS into 8 ohm

RMS 2 V or 1 V sensitivity

Signal to noise ratio: 110dB

Distortion: thd + n < 0.05%

Power consumption: 400W

Bandwidth: 10 Hz - 80 kHz

Width: 27.7cm

Height: 17.4cm

Depth: 99.5cm

Weight: 15kg


With oversize transformer and PFC active correction power factor

NAGRA's patented PFC ultra-high speed filter power supply with capacity of up to 300 000 F enables the CLASSIC AMP to achieve the best dynamic performance and load adaptation, allowing it to leisurely and uneasily produce enormous power in a small size.

It is A collection of NAGRA's patented technology that has been developed over the years. It USES A minimalist, fully balanced amplifier circuit design. Most of the time, it works for pure Class A, and only transforms to class AB output when it goes to high power output, so as to achieve the purest and most transparent signal playback.

The input and driver levels use highly selected fever module tuning tests in conjunction with the strict selection of the matched MOSFET transistors with the most valve tone

With bridge function dial button, can be used as 200 watts mono channel back stage.
